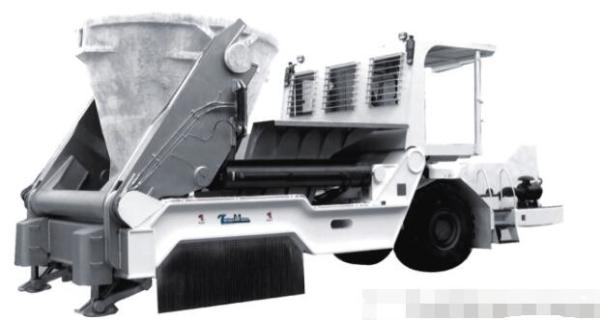

DC 24 Volt Slag Tank Transport Vehicle Efficient Lighting System Wide View

1. Drawing

2. Main Technical Parameters

3. Product Superiority

• Safety:

1. Double brake system of hydraulic brake and air brake. The hydraulic brake controls driving and parking of the transaxle, while air brake controls driving and parking of the driven bridge. The system will keep the stability of the braking performance of the device when the other system is failed.
2. Engine stall brake emergency brake system.
3. Bidirectional operation cab, and the driving and reversing of the equipment are based on the operator’s first perspective. (In the process of driving and reversing, operator can operate in the same direction as the equipment moving direction)
4. Efficient lighting system and wide view, the operation is not subject to environmental constraints at night. (lights, fog lights, width lights, outrigger images, top images, etc.)
5. Safety designed work syste. (The balance valve ensures stability of the equipment, the the molten steel will not splash out when hot the tank because of its smooth and small action amplitude. The explosion-proof valve ensures that the pipeline is locked immediately when the equipment pipeline fails, too avoid slag tank out of control)
6. The PLC program is interlocked to avoid accidents caused by operation errors and misoperations. (The legs are interlocked with the boom, the boom cannot operate normally if the legs are not extended in place.)
7. Obtained “Special Equipment Safety Certificate ‘.

• Reliablity:

1. Sweden import original VOLVO engine.
2. Adopted US DANA integrated torque converter and of the drive system.
3. Pumps and valves are world famous brand PARKER, DANFOSS, HAW, etc.
4. PLC system to monitor the complete machine, it will alarm when caused hydraulic and air pressure breakdown.
5. The booming mother board is made of wire cut to ensure the smoothness of the can ear movement when holding the can.
6. Whole rear frame De-stress treatment.
7. Main electria appliance are Germany Schneider products.

• Economy:

High quality components ensure normal operation and low failure rate, and less equipment maintenance frequency.

• Environmental friendly:

The imported exhaust purifier is equipped with imported low-pollution water-cooledengine, which effectively reduces the emission of pollution and harmful gas.

• Service:

1. The equipment can be customized according to customer needs. (Big arm size, centralized lubrication system, etc.)

2. Low configuration version with lower rice( some components made in China)
