    Power Steering 4x4 Wheeler 10000KG 5m3 Underground Mine Truck

    Ask Lasest Price
    Brand Name : TongGuan
    Model Number : UK 10
    Certification : KA
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 90-120 days
    • Product Details
    • Company Profile

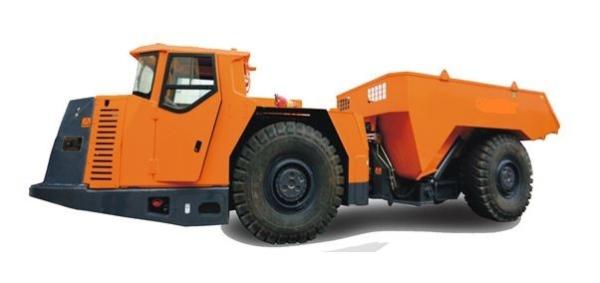

    Power Steering 4x4 Wheeler 10000KG 5m3 Underground Mine Truck

    DANA Transmission 10T Diesel 5m3 Bucket Low Profile Dump Druck


    Low Profile Dump Druck Superiority:

    Safety:

    1, Using imported spring brake hydraulic release wet multi-disc brake

    2, Engine flameout automatic emergency braking system.

    3, With cab

    4, Efficient lighting

    5, Dumper car support service rod

    6, Obtained Mining Products Safety Approval and Certificate


    Reliability:

    1. World famous brand, the US DANA double change system.
    2. Brands of brake system fillung valve, foot brake valve are the US MICO, Italy SAFIM and the US SUN.
    3. Structural components are processed by professional distressing equipment and shot blasting.
    4. Main electrical components are Germany Schneider products.

    Low Profile Dump Druck​ Technical Parameter:

    No.ItemUK-10 parametersUK-12 parametersRemark
    1Max. travel speed km/h
    1st gear/ km/h5±0.55±0.5
    2nd gear/ km/h10±0.510±0.5
    3rd gear/ km/h17±117±1
    4th gear/ km/h22.5±122.5±1
    2Max. tractive force/ kN≥96≥96
    3Max. gradeability25 %(14°)25 %(14°)
    4Min. ground clearance/mm≥260≥260
    5Max. lateral oscillation angle9±1°9±1°
    6Wheel base / mm4600±104600±10
    7Wheel tread / mm1530±101530±10
    8Operating weight / kg9000±5009500±500
    9Load capacity / kg1000012000
    10Bucket capacity / m35±0.56±0.5
    11Dimensions
    Length/ mm7900±1007900±100
    Width/ mm1840±501840±50
    Height( with overhead guard) mm2210±1002210±100
    12Turning radius
    Inner side / mm4945±1004945±100
    Outboard / mm7930±1007930±100
    13Max. disassembly size/mm
    Front rack/ mm4080X1840X11354080X1840X1135
    Hopper/ mm3882X1780X13553882X1780X1515

    Economy: High-quality well-known brand parts effectively ensure the normal operation of equipment, low failure rate and low maintenance frequency.

    Enviromental friendly: Exhaust purification adopts famous brands products, effectively ensure low pollutant emission.

    Service:

    1. Can be customized according to customer needs for products, after-sales and spare parts store.
    2. Centralized lubrication system
    3. Fire extinguishing system.
    4. Narrow space steel pipe system, maintenance-free.
    5. Customize hoppers of different volumes according to specific gravity of the mineral.
    6. EFI engine PLC control system.
    7. Infinitely variable speeds control system.
    8. Brake system with high performance liquid filling valve.
    9. Power steering system.

    Low Profile Dump Druck Photos:


    Company Introduction:

    Anhui TongGuan Machinery and Technology Co.,Ltd is subsidary to Anhui TongGuan Machinery Co.,Ltd,and its businesses are export & import trade and R&D. Anhui Tongguan Machinery Co., Ltd is located in Tongling city, which once was an ancient copper city in China. The company is a national high-tech enterprise integrating the production, study and research, holding by Tongling Nonferrous Metals Group and shareholding by Changsha Mining Research Institute, Beijing Mining and Metallurgical Research Institute and Anhui Provincial Guarantee Group Corporation.


    FAQ:

    1. Are you factory or trade company?
    We are manufacturer, we also supply trade service.
    2. Will you provide some wearing parts of the machines?
    Yes, of course.we ship them with machine,spare parts in wood case.
    3. How is the quality of your products?
    We have been approved of ISO,CE and always produce our products strictly according to national and intertnational standards.We do strict inspection in every production stage,all the machines we sell are under warranty.
    4. What about your price?
    We always supply our products with low price,because we believe this is the way to build long-term business and earn good reputation.
    5. What payments term do you accept?
    We accept L/C,T/T and other ways like D/A and D/P etc,T/T goes with 30% advanced payment after signing contract or order confirmation.
    6. What about the order lead time?
    We have two factories and big productivity,the order lead time is only 15-20 days.
